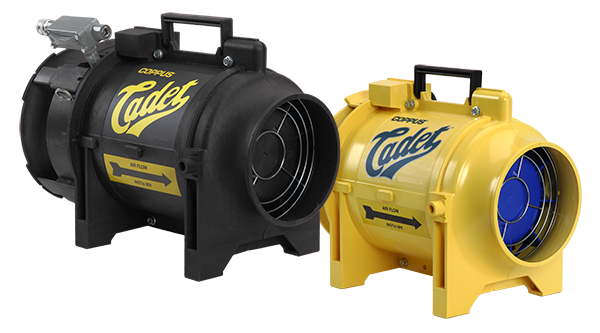

Versatile, Compact Vane Axial Blower
These rugged and economical ventilators deliver exceptional air flow in a compact, lightweight design – and their non-corrosive injection-molded housings are nearly indestructible. The Cadet is ideal for confined space ventilation of underground utilities and light manufacturing facilities. Hazardous and non-hazardous location models are available; multiple electrical options are available as well.
CADET® Features & Advantages:
- Non-corrosive, flame-resistant, injection-molded housings
- Carrying handle
- Fixed guide vane for optimal performance
- Safety screens per OSHA; plated steel
- Easily attach 8” duct (203 mm) to inlet & outlet
- Glass-reinforced, polyester resin, spark-resistant fan blade
- Reversible, locking, inlet flange for ducted and non-ducted applications
- 60 Hz or 50 Hz AC motors
- 115V or 230V (60 Hz), and 110V or 220V (50 Hz) options available
- Auto thermal overload protection
- 15 ft (4.57 m) cord
- Plug end (115V only)
- 88 dBA @ 5 ft (1.5 m)
VAC Features & Advantages:
- Non-hazardous location applications only
- Yellow polycarbonate/ABS blended stationary components
- Motor – single speed, ½ HP, totally enclosed
- Rocker on/off switch
VEP Features & Advantages:
- Hazardous & non-hazardous location applications
- Black static dissipating components
- Motor – single speed, ½ HP, explosion proof
- Hazardous location motors rated NEC Class I, Division I, Group D & Class II, Division I, Groups E, F & G specifications
- Pull ring switch
Accessories:
- 8” Heavy Duty Duct (VAC)
- 8” Poly-vinyl Duct (VAC)
- 8” Conductive Duct (VEP)
- 8” Duct Storage Canister

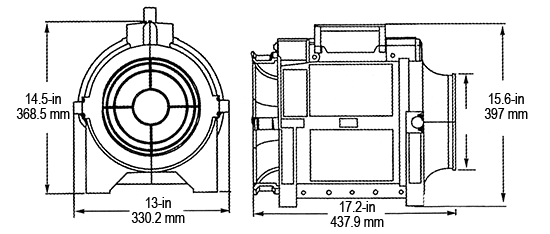

Dimensions:
Performance:
AIR FLOW THROUGH DUCT (90° DEGREE BENDS)
|
Cadet
|
Free Air
|
1 - 90°
|
2 - 90°
|
3 - 90°
|
cfm
|
m3/hr
|
cfm
|
m3/hr
|
cfm
|
m3/hr
|
cfm
|
m3/hr
|
VAC1 / VEP1
|
867
|
1,465
|
776
|
1,318
|
766
|
1,301
|
756
|
1,284
|
VAC2 / VEP2
|
804
|
1,358
|
730
|
1,240
|
720
|
1,223
|
710
|
1,206
|
VAC3 / VEP3
|
867
|
1,465
|
776
|
1,318
|
766
|
1,301
|
756
|
1,284
|
VAC4 / VEP4
|
804
|
1,358
|
730
|
1,240
|
720
|
1,223
|
710
|
1,206
|
FREE AIR DECIBEL LEVEL
|
Cadet
|
88 dBA
|
*See accessories section for details*
