COPPUS Marine Ventilators

Steam-, Air-, and Water Turbine-Drive Ventilators

These rugged, dependable cargo tank ventilators have served the shipping industry for many years. They are ideal for on-board gas-freeing, drying and ventilation operations and are available in supply or exhaust models.



Steam/Compressed Air Turbine-Drive Models Features & Advantages:

  • Cast iron turbine housing with aluminum cover
  • Bronze turbine wheel
  • Grease-type ball bearings
  • Cast aluminum fan and fan casing
  • Stainless steel fasteners, mounting studs and protective screen
  • Delivers 5,350 cfm (9,090 m3/hr) Supply (C-12A)
  • Delivers 4,600 cfm (7,815 m3/hr) Exhaust (C-12A)
  • Delivers 8,400 cfm (14,275 m3/hr) Supply (C-15A)
  • Delivers 6,500 cfm (11,044 m3/hr) Exhaust (C-15A)



Water Turbine-Drive Models Features & Advantages:

  • Cast aluminum anodized turbine housing
  • Cast aluminum anodized impeller
  • Cast aluminum inlet and outlet water connections
  • Grease-sealed stainless steel ball bearings
  • Cast aluminum fan and fan casing
  • Stainless steel fasteners and protective screen
  • Delivers 5,000 cfm (8,495 m3/hr) Supply (C-12A)
  • Delivers 4,700 cfm (7,985 m3/hr) Exhaust (C-12A)
  • Delivers 7,400 cfm (12,573 m3/hr) Supply (C-15A)
  • Delivers 5,700 cfm (9,769 m3/hr) Exhaust (C-15A)



Accessories:

  • Vaned Adapter
  • Beaded Adapter
  • Bonding Cable
  • Duct



Safety Precautions:

  • Always be sure unit is connected to suitable ground connection.
  • Mounting on non-conductive or free-standing use requires a bonding cable

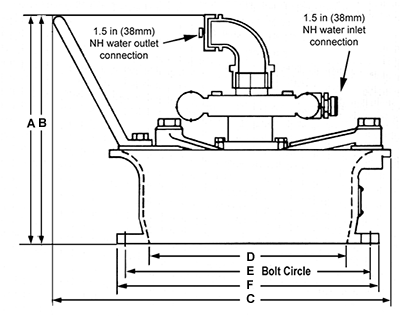

Dimensions:



PHYSICAL DIMENSIONS
Marine A B C D E F Bolt Slots Net Wt.
Size No.
in mm in mm in mm in mm in mm in mm in mm lbs kg
C-12A 12.6 321 14.2 362 20.5 521 12.5 318 15.3 390 16.8 427 0.93 24 10 100 45
C-15A 21 533 14.2 362 22.2 565 15.3 387 20.5 521 21.5 546 1.12 28 8 120 54
C-12AW 14.8 376 14.2 362 22.5 572 12.5 318 15.3 390 16.8 427 0.93 24 10 63 28
C-15AW 16.5 419 14.2 362 24.5 622 15.2 387 20.5 521 21.5 546 1.12 28 8 77 35
