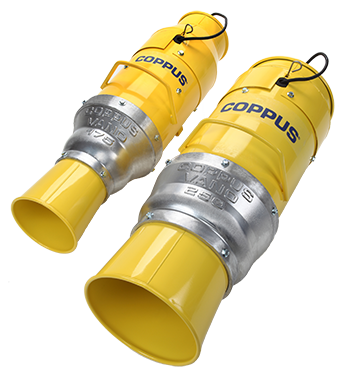

COPPUS VANO® 175CV & 250CV

Rugged, Reliable Ventilators

COPPUS Ventilators revolutionized air moving equipment more than 60 years ago with the introduction of the VANO. The VANO offers a fixed guide vane design that delivers high volumes of air while maintaining static pressure for exhausting fumes and delivering fresh air – making it the quintessential confined space ventilator. A rugged, durable, high-performance design makes the VANO ideal for ventilating tanks, process vessels, tank cars, manholes, and other confined spaces.

VANO® Features & Advantages:

  • Heavy-gauge steel and cast aluminum construction
  • Beaded-end for structural integrity
  • Corrosion resistant powder coating
  • Lift handle at or near equilibrium for easy lifting
  • Nickel plated steel guide vanes protected by cast aluminum housing for improved static pressure performance
  • Safety screens per OSHA; plated steel
  • Convertible inlet designed to exhaust fumes from bottom of tanks
  • 115V or 230V (60 Hz), and multiple 50 Hz voltage options
  • All models supplied with switches and 15 ft (4.57 m) power cord; plug 115V totally enclosed only
  • Auto thermal overload protection
  • Hazardous location (EP) motors rated NEC Class I, Division I, Group D & Class II, Division I, Groups E, F & G specifications
  • 92 dBA @ 5 ft (1.5 m)
  • Tripod available with any VANO. Elevates VANO to waist height for ergonomics and better access to elevated tank openings; allowing VANO to be positioned between 45 degrees up and down and pivoting 360 degrees.
  • Transport cart available for any VANO. Cart provides easy transportation and handling of VANO; eliminating need to lift or carry and can be operated while strapped to cart.



175CV Features & Advantages:

  • Easily attach 8” duct (203 mm) to inlet & outlet
  • Glass-reinforced, polyester resin, spark-resistant fan blade
  • Motor – single speed, 3/4 HP, totally enclosed (TE) or explosion proof (EP) options



250CV Features & Advantages:

  • Easily attach 12” duct (305 mm) to inlet & outlet
  • Cast aluminum fan blade
  • Motor – single speed, 1 HP, totally enclosed (TE) or explosion proof (EP) options



Accessories:

  • Tripod
  • Transport Cart
  • 8” Heavy Duty & Polyvinyl Duct (175CV)
  • 8” Conductive Duct (Hazardous Location 175 CV)
  • 12” Heavy Duty & Polyvinyl Duct (250CV)
  • 12” Conductive Duct (Hazardous Location 250CV)
  • 8” Duct Storage Canister (175CV)
  • 12” Duct Storage Canister (250CV)

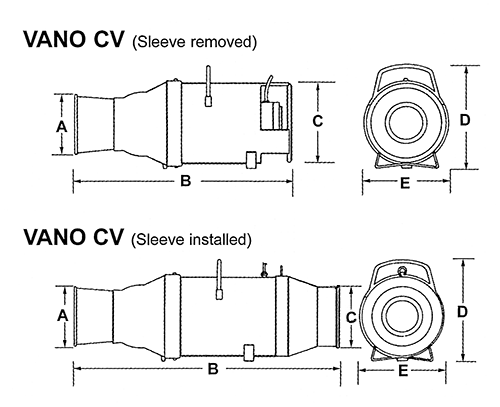

Dimensions:

PHYSICAL DIMENSIONS
VANO A B C D E DUCT Net Wt.
in mm in mm in mm in mm in mm in mm lbs kg
175 CV
Sleeve Removed
8.38 213 31.88 810 10.62 270 13.75 349 11.38 289 8 203 62 28
175 CV
Sleeve Installed
8.38 213 38.88 988 8.38 213 13.75 349 11.38 289 73 33
250 CV
Sleeve Removed
12 305 33 838 12.25 311 15.62 397 13.25 337 12 305 86 39
250 CV
Sleeve Installed
12 305 36 914 12 305 15.62 397 13.25 337 93 41



Performance:

AIR FLOW THROUGH DUCT (STRAIGHT RUN)
VANO Free Air 10 ft  (3 m) 20 ft  (6 m) 30 ft  (9 m) 50 ft  (15 m)
cfm m3/hr cfm m3/hr cfm m3/hr cfm m3/hr cfm m3/hr
175CV 60 Hz 1,500 2,549 1,400 2,379 1,300 2,209 1,200 2,039 1,080 1,835
250CV 3,000 5,098 2,940 4,995 2,620 4,452 2,480 4,214 2,300 3,908
175CV 50 Hz 1,250 2,124 1,167 1,983 1,083 1,841 1,000 1,699 900 1,529
250CV 2,500 4,248 2,450 4,163 2,183 3,710 2,067 3,512 1,917 3,257



FREE AIR DECIBEL LEVEL
VANO 175CV 90 dBA
VANO 250CV 92 dBA
